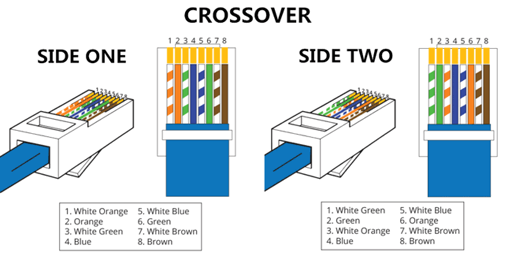

Wiring Ethernet Cable rule

lemmy.ml

TFO Winder@lemmy.ml to 196@lemmy.blahaj.zone · 2 months ago
message-square
34
fedilink
alert-triangle
You must log in or register to comment.
  • Pencilnoob@lemmy.world
    link
    fedilink
    English
    arrow-up
    53
    arrow-down
    1
    ·
    2 months ago

    Just remember crossover is hardly ever used now. Straight is almost always what you need for typical use.

    • Denjin@lemmings.world
      link
      fedilink
      arrow-up
      23
      ·
      2 months ago

      Unless you’re using particularly old switches or routers it doesn’t matter if you’re using straight or crossover anymore.

      • Badabinski@kbin.earth
        link
        fedilink
        arrow-up
        13
        ·
        2 months ago

        God bless you auto MDI-X

      • spooky2092@lemmy.blahaj.zone
        link
        fedilink
        English
        arrow-up
        7
        ·
        2 months ago

        And really only on both sides. Thankfully, auto detect only requires one side to have it to work.

        • Draconic NEO@lemmy.dbzer0.com
          link
          fedilink
          arrow-up
          2
          ·
          2 months ago

          Unfortunately I found it doesn’t always work so smoothly. It didn’t on my PS2 no matter how much I tried. Crossover is still needed in some cases I guess.

  • jabathekek@sopuli.xyz
    link
    fedilink
    arrow-up
    32
    arrow-down
    1
    ·
    2 months ago

    what gay flag is that

  • Draconic NEO@lemmy.dbzer0.com
    link
    fedilink
    arrow-up
    29
    ·
    2 months ago

    I’m pretty sure you have to cross the blue and brown wires too.

    • Hobbes_Dent@lemmy.world
      link
      fedilink
      arrow-up
      22
      ·
      2 months ago

      Orange white Orange Green white Blue Blue white Green Brown white Brown

      Is etched in my memory. Swap oranges and greens to go between style A and B, do it on one end for a crossover.

      • asmoranomar@lemmy.world
        link
        fedilink
        arrow-up
        6
        ·
        2 months ago

        ^ This. There are A and B standards, and each standard has its own crossover. But there is also a crossover between A and B standards, which is typically what is used when referring to crossover cables.

        In other words:

        Not A-to-A xover

        Not B-to-B xover

        xover A-to-B

    • EffortlessEffluvium@lemm.ee
      link
      fedilink
      arrow-up
      13
      ·
      2 months ago

      Are you crazy??? That’s only if you are fighting Zuul!!

      • PattyMcB@lemmy.world
        link
        fedilink
        arrow-up
        8
        ·
        2 months ago

        There is no DIN, only Zuul!

      • Draconic NEO@lemmy.dbzer0.com
        link
        fedilink
        arrow-up
        2
        ·
        2 months ago

        You never know if you will be though. Better to have it and not need it than need it and not have it.

    • Aqarius@lemmy.world
      link
      fedilink
      arrow-up
      2
      ·
      2 months ago

      I was about to say - the outs go in, and the ins go out. The picture is wrong.

      • Draconic NEO@lemmy.dbzer0.com
        link
        fedilink
        arrow-up
        2
        ·
        2 months ago

        It is? This is the diagram I have laminated and glued on my termination kit never had any issues with it.

        • Aqarius@lemmy.world
          link
          fedilink
          arrow-up
          2
          ·
          2 months ago

          No, I mean the OP. Theirs is a half-crossover.

          • Draconic NEO@lemmy.dbzer0.com
            link
            fedilink
            arrow-up
            1
            ·
            2 months ago

            Oh yeah, that makes more sense.

  • whodatdair@lemmy.blahaj.zone
    link
    fedilink
    arrow-up
    14
    ·
    2 months ago

    lol I’ve used this exact image when crimping Ethernet so many times

  • prole@lemmy.blahaj.zone
    link
    fedilink
    arrow-up
    13
    ·
    2 months ago

    Man, side two is just full of bangers…

  • KingOfTheCouch@lemmy.ca
    link
    fedilink
    arrow-up
    13
    ·
    2 months ago

    https://bigbeaverenergy.com/products/nerd-gang-shirt

    • Brickhead92@lemmy.world
      link
      fedilink
      arrow-up
      3
      ·
      2 months ago

      568A, and I’m ready to fight!

    • nautilus@lemmy.dbzer0.com
      link
      fedilink
      arrow-up
      2
      ·
      2 months ago

      Science gangsters unite

  • spooky2092@lemmy.blahaj.zone
    link
    fedilink
    English
    arrow-up
    9
    ·
    2 months ago

    Remember, type B ends are the "B"est ends

  • lnxtx (xe/xem/xyr)@feddit.nl
    link
    fedilink
    English
    arrow-up
    7
    ·
    2 months ago

    It’a all about backwards compatibility, see the history.

  • Boomer Humor Doomergod@lemmy.world
    link
    fedilink
    English
    arrow-up
    6
    ·
    2 months ago

    And now I’m back in college helping a buddy wire a community center for beer money

  • thenewred@lemmy.world
    link
    fedilink
    arrow-up
    5
    ·
    2 months ago

    I assumed crossover cables were to go between A and B standards, but that doesn’t look accurate. What are they for then?

    • BigDanishGuy@sh.itjust.works
      link
      fedilink
      arrow-up
      7
      ·
      2 months ago

      It’s not for going between 568A and B, it’s just terminated that way. What is flipped is the transmit and receive pins. It’s used in equipment that can’t auto-mdix, if you need to connect two ports or two interfaces. Like interface on a NIC with a router, or ports on two switches/hubs.

  • jia_tan@lemmy.blahaj.zone
    link
    fedilink
    English
    arrow-up
    6
    arrow-down
    1
    ·
    2 months ago

    The femboy urge to redo all you homelab wiring with custom ether at runs :3

  • shapesandstuff@feddit.org
    link
    fedilink
    arrow-up
    4
    ·
    2 months ago

    Ahhh that brings back memories.
    hilariously one from 2015 when a buddy and mine were abroad and didn’t have internet for a good month.
    Raven shield co-op with no hardware

  • Wetstew@lemmy.world
    link
    fedilink
    arrow-up
    3
    ·
    2 months ago

    I wish I were her.

  • belated_frog_pants@beehaw.org
    link
    fedilink
    arrow-up
    1
    ·
    2 months ago

    (If you didnt know, gigabit+ ethernet adaptors dont require these as they automatically make normal cables work as crossover, this was for 10/100 adaptors)

    • Draconic NEO@lemmy.dbzer0.com
      link
      fedilink
      arrow-up
      2
      ·
      2 months ago

      Doesn’t always work on older hardware. My PS2 doesn’t connect to my new PC despite my PC having Gigabit Ethernet which can do auto switching.

      • belated_frog_pants@beehaw.org
        link
        fedilink
        arrow-up
        2
        arrow-down
        1
        ·
        2 months ago

        Both ends need it

        • Draconic NEO@lemmy.dbzer0.com
          link
          fedilink
          arrow-up
          2
          ·
          2 months ago

          Then why are people saying only one end needs it?

        • Oisteink@feddit.nl
          link
          fedilink
          arrow-up
          1
          ·
          2 months ago
